The Diagonal Method

Four 45° Guides for Compositional Detail

The Diagonal Method offers a different way of examining where important details fall within a rectangular picture. Instead of connecting opposite corners or dividing the frame into thirds, it draws a line at 45 degrees into the image from each of its four corners. The resulting framework can help an artist explore the placement of an eye, a hand, a small object, a contrasting edge, or another meaningful detail.

This method is especially interesting because its geometry is simple but its history invites caution. Dutch photographer and teacher Edwin Westhoff described the Diagonal Method in 2006 after examining photographs and paintings [1]. He observed that details he considered significant often fell near these diagonals. Such observations can inspire visual analysis; they do not prove that earlier artists consciously used the same diagram or that aligning details with it necessarily improves a picture.

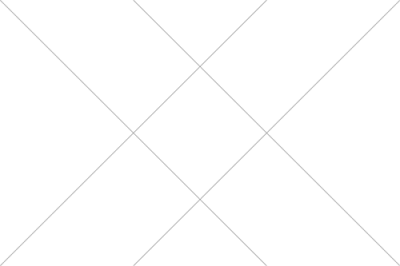

Construction: corner bisectors, not the diagonals of the frame

Let the picture have width W and height H, measured in the same units. Its top-left corner is (0, 0), with x increasing to the right and y downward. Let L = min(W, H), the length of the shorter side. The construction consists of four line segments:

• Top-left: (0, 0) → (L, L).
• Top-right: (W, 0) → (W − L, L).
• Bottom-left: (0, H) → (L, H − L).
• Bottom-right: (W, H) → (W − L, H − L).

Every line bisects the 90-degree corner from which it starts, so its direction is 45 degrees to either adjacent side. Each segment has the same geometric length, L√2. The endpoints lie on the opposite edge in an ordinary non-square rectangle. For a square, pairs of segments overlap, leaving the familiar X of two corner-to-corner diagonals.

This distinction is fundamental. A full diagonal from one corner of a rectangular canvas to the opposite corner forms the angle arctan(H/W) with the horizontal. It is exactly 45 degrees only in a square. The Diagonal Method retains its 45-degree directions irrespective of the rectangle’s proportions.

A practical construction requires no special instrument. With a ruler and set square, mark equal distances from a corner along the two adjoining edges, then connect the corner with the corresponding interior point. Repeat for the remaining corners. If the shorter side is H, for example, the 45-degree segments extend from each corner until they reach the opposite horizontal edge.

A worked example: a 60 × 40 cm canvas

Consider a landscape canvas 60 cm wide and 40 cm high. Here L = 40 cm, so the four segments have these endpoints:

• From the upper-left corner: (0, 0) → (40, 40).
• From the upper-right corner: (60, 0) → (20, 40).
• From the lower-left corner: (0, 40) → (40, 0).
• From the lower-right corner: (60, 40) → (20, 0).

The arrangement may be understood as the diagonals of two overlapping 40 × 40 cm squares: one occupying x = 0–40 cm, the other x = 20–60 cm. Each has its own centre. The two square centres are (20, 20) and (40, 20) cm. The lines also intersect at (30, 10) and (30, 30) cm, producing a central diamond-shaped arrangement of crossings.

None of these four crossings is a compulsory focal point. The method is concerned with positions along the lines as well as their intersections. A detail need not be positioned at the centre of a square, nor should the artist attempt to distribute four equally important objects around the crossings.

Format matters. If the canvas becomes very wide, the two square-based constructions may stop overlapping. If it becomes square, the four segments collapse into two visible lines. The underlying rule remains the same, but the visible pattern and the number of intersections change. This is why a ready-made diagram should never be stretched indiscriminately to fit a different aspect ratio.

What can be placed along the diagonals?

Westhoff placed particular emphasis on meaningful details rather than the centres of entire objects [1, 2]. In a portrait, this might be an eye, a hand, or a small object the sitter holds. In a narrative painting, it could be a letter, a key, an instrument, or a particular gesture. In a still life, the detail might be a brightly lit rim, a leaf, a folded corner of cloth, or a distinctive highlight.

These choices are interpretative. Two artists can look at the same painting and disagree about which detail carries the greatest meaning. Moreover, proximity to a drawn line is not the same as perceptual dominance: contrast, value, colour, scale, edges, and context all influence attention. Placing a small detail on a diagonal cannot substitute for organizing the major value masses and the overall shape of the composition.

The method is therefore most useful as a questioning device: If I shift this hand or eye slightly, do I improve its relationship with the rest of the picture? Is a small detail unintentionally drawing more attention than the principal form? Could a change in the crop strengthen the narrative without weakening the large shapes?

Historical background: observation and attribution

In the account published on his Diagonal Method website, Edwin Westhoff states that he arrived at the method in 2006 while investigating the limitations of the Rule of Thirds [1]. He described the geometry as 45-degree bisectors of the four image corners and used examples from photography and historical painting. A subsequent discussion in photographic literature introduced the idea to a broader audience [2].

The chronological distinction is important. A twenty-first-century method of examining older pictures is not automatically a documented historical working method. A line that happens to pass through an eye in a Rembrandt portrait cannot establish that Rembrandt measured and used that line while composing the painting. To support such a claim, one would need independent evidence from drawings, working procedures, writings, or physical examination of the artwork.

There is also a methodological difficulty. If the analyst chooses the most relevant detail after seeing where the lines fall, it becomes easy to find persuasive matches. Images with many small details offer many possible candidates. This does not make the overlay useless, but it limits the strength of claims that the method reveals a universal principle or proves an artist’s intention.

Diagonals themselves are, of course, much older than this named method. Art teaching has long considered directional lines and their relationships to movement and structure. The Open University’s course on art history explains how directional lines may lead the eye around a composition [3]. That broader tradition should not be confused with Westhoff’s particular four-line overlay.

Putting the method to work in painting

Portrait and figure

Begin with the major structure: head, shoulders, surrounding space, and the overall silhouette. Only then use the diagonal overlay to examine smaller details. An eye may fall near a line, but the head should not be distorted simply to satisfy the grid. The direction of the gaze, the lighting, and the emotional weight of the gesture are usually more consequential than a millimetre-perfect alignment.

When a hand is central to the subject’s action, try comparing two small sketches in which the fingers or the held object shift relative to one of the diagonal lines. Notice whether the change clarifies the gesture or merely creates a geometrical coincidence. Remember that the hand’s contour and the viewer’s reading of its position depend on anatomy and perspective, not on the overlay.

Still life

Use a simple arrangement with one main object and two or three supporting objects. Establish the large light and dark masses first. Next, identify a meaningful detail such as the lip of a vessel, a bright fruit stem, a glint on glass, or the sharp fold of a napkin. Try placing that detail close to one 45-degree diagonal while preserving the overall grouping.

Make a second version with the detail slightly away from the guide. Comparing the two reveals whether the first alignment contributes anything. Do not move every object onto the lines: the result may become scattered or artificially mechanical. The purpose is to test a small decision inside a larger composition.

Narrative painting and illustration

When a story depends on a small element, the method may help with its placement. A key, a note, the tip of a tool, or an expressive hand may carry more narrative significance than its size suggests. Positioning it on or near a diagonal can be one option for linking it to the frame and to other actions.

But there is no reason to expect the viewer to identify a detail solely because it lies on an invisible line. Value contrast, colour separation, edge sharpness, direction of gaze, and the surrounding negative space remain essential.

Landscape and architectural subjects

Landscape scenes often depend on broad tonal regions, horizons, and paths. The Diagonal Method is less directly useful when there is no precise detail that merits special emphasis. Roads, roof lines, or riverbanks may create strong visible diagonals, but these should not automatically be confused with Westhoff’s fixed 45-degree guides. Visible depth cues and perspective have their own geometry.

Three related diagrams that should not be confused

• Corner Diagonals: two complete lines connect opposite corners and cross at the centre. Their angle changes with the aspect ratio.
• Diagonal Method: four 45-degree segments start at the corners and extend through the frame using the shorter side as their measure.
• Extended Diagonals: a denser framework combining the two full frame diagonals with additional lines from corners to selected opposite side midpoints.

These are distinct constructions. Choosing one depends on what the artist wishes to examine. None has an inherent claim to produce better paintings than the others.

What research can and cannot tell us

Studies of perceptual balance offer a useful warning against treating any geometric overlay as a proven aesthetic formula. McManus, Stöver, and Kim (2011) tested aspects of Rudolf Arnheim’s visual-balance ideas. Some broad statistical patterns were consistent with the ideas, but controlled comparisons failed to support the specific model [4]. This study did not directly test Westhoff’s Diagonal Method; it illustrates why plausible geometric explanations still require appropriate experiments.

The Open University’s account of directional lines [3] is useful for understanding common pictorial effects. It should not be converted into a guarantee that diagonal alignment creates movement or aesthetic superiority in every scene. Perception depends on the relationships of many features, not one set of invisible guides.

For the practising painter, the most honest claim is modest: this overlay supplies a precise way to compare alternative placements. Whether a particular placement is stronger must still be judged in the picture itself.

Practical exercise: test the detail, not the doctrine

Create a small still life with a ceramic vessel, a piece of fruit, and a cloth. Prepare a 60 × 40 proportioned drawing and establish the large value masses. Then choose just one small, identifiable detail: for example, a reflected highlight on the vessel or the fruit’s stem.

1. Draw the four 45-degree diagonals lightly over a tracing of the composition. Make version A with the chosen detail close to one line.
2. Keep the large shapes approximately constant and create version B with that detail slightly displaced from the line.
3. Make version C with a different crop, preserving the object relationships where possible. Observe how the four guides move relative to the objects.
4. Compare A, B, and C without displaying the grid. Ask which version communicates the subject most clearly and why.

A successful experiment may show that the diagonal alignment helps, has no noticeable effect, or even weakens the image. All three outcomes teach something. If the compositional difference is invisible without the overlay, the supposed benefit may not be important.

Conclusion

The Diagonal Method is a precise four-line construction based on 45-degree angle bisectors. It differs mathematically from drawing a large X across a rectangle, and its usefulness lies chiefly in examining the placement of small, meaningful details within a larger pictorial structure.

Westhoff’s observations give the method an identifiable modern history, but they do not establish that painters throughout history consciously followed it. For artists today, the strongest use is experimental: compare alternative arrangements, look at the image without the grid, and allow visual judgment to overrule geometric neatness.

Sources and further reading

[1] Edwin Westhoff. Diagonaal Methode, official explanation and account of its discovery.

[2] Thomas Park. Compositional Rules. DPReview, 21 August 2012.

[3] The Open University. Making Sense of Art History: 7.3 The Use of Line.

[4] I. C. McManus, K. Stöver, D. Kim. Arnheim’s Gestalt Theory of Visual Balance: Examining the Compositional Structure of Art Photographs and Abstract Images. i-Perception, 2011.
